PLEASE NOTE: Original box & DC Adaptor NOT Included, SOLD AS IS. This pedal was included as part of a guitar trade deal from a local customer of our shop. The pedal has been tested and operates normally.

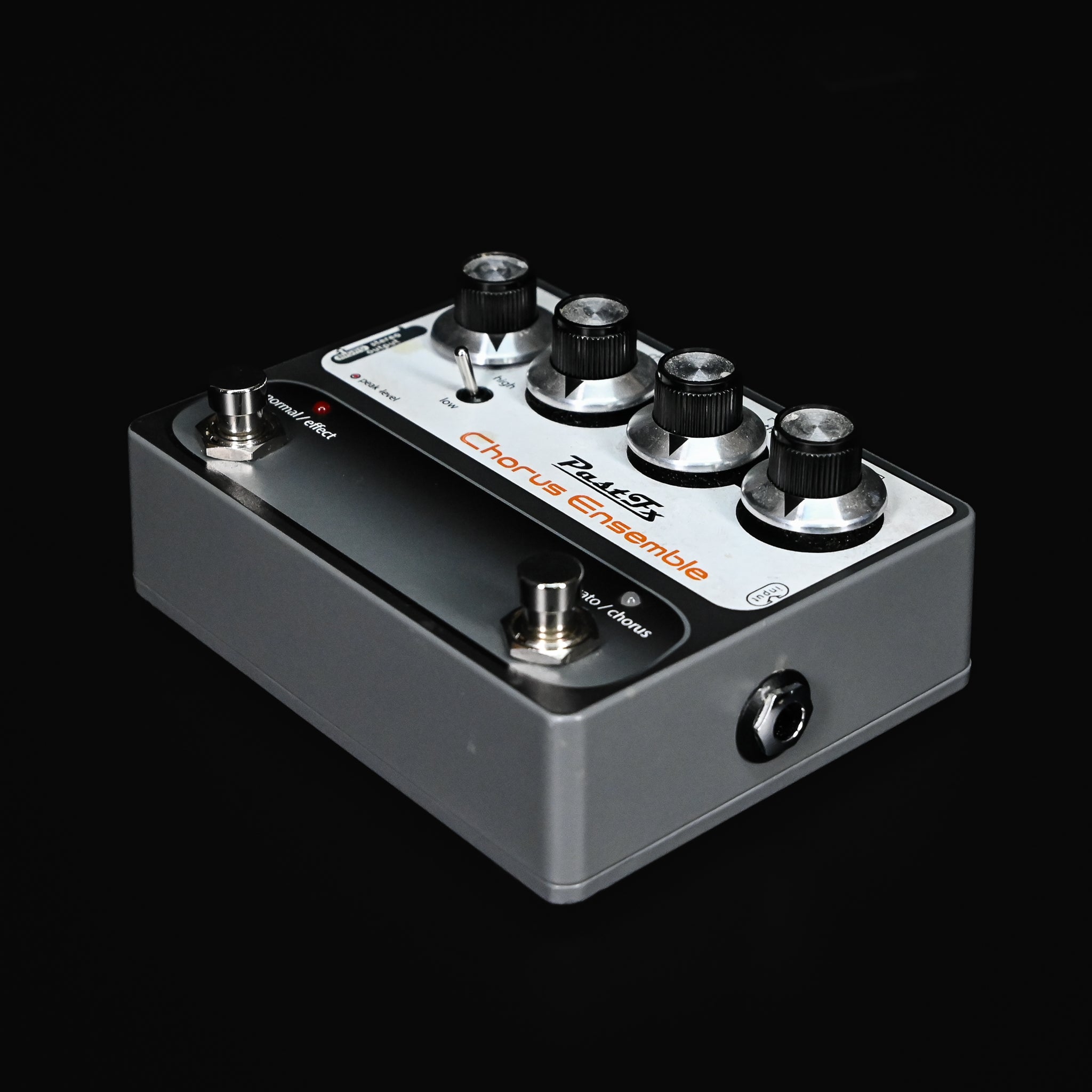

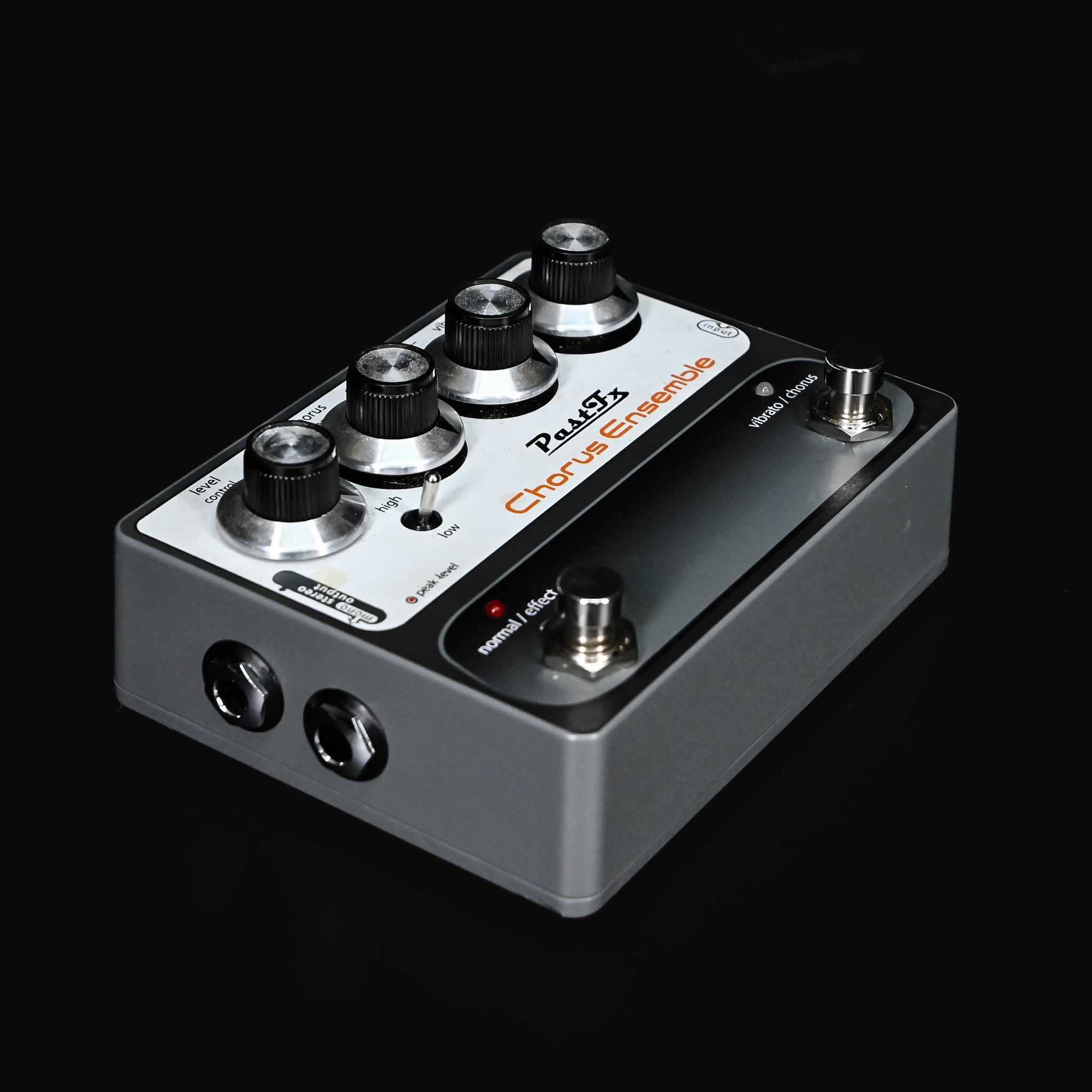

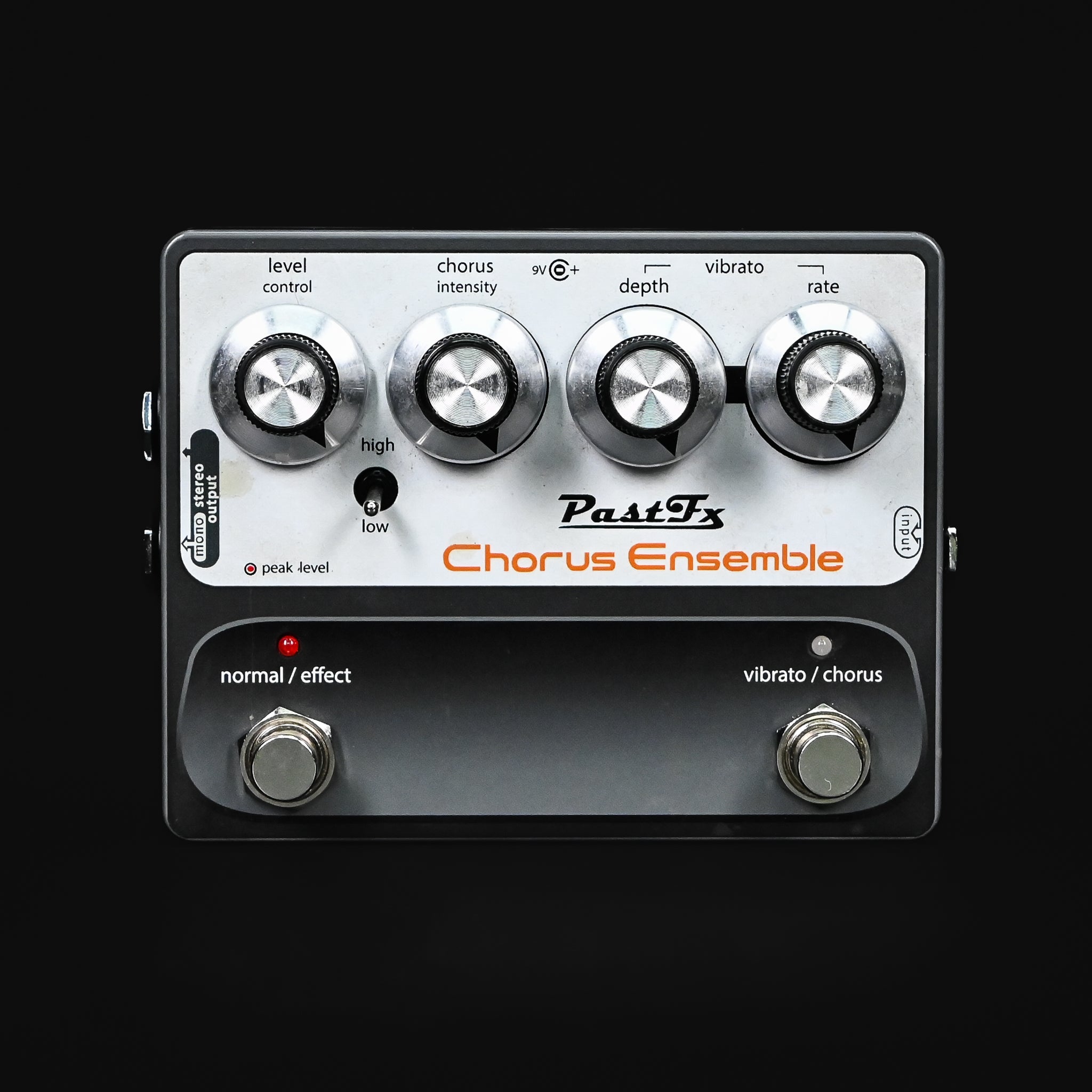

The PastFx Chorus Ensemble Deluxe (CED) is based upon the Holy Grail of Chorus pedals, The BOSS® CE-1. First released in 1976 it became famous for lush Chorus and Leslie effect Vibrato.

The CED is attractively priced and of compact size. It is approximately 1/3 of the size and weight of an original. At 40yrs of age, original units can develop reliability issues and require capacitor replacement and extensive servicing. Unmodified working originals are becoming harder to find and are expensive. The CED requires no fuses and is not powered by mains voltage. With today’s advancements in technology, the CED operates off the same bipolar voltages as The BOSS® CE-1, however it only requires standard 9vdc pedal power supply.

Features

Uses obsolete 512 stage 1970's bucket brigade chip
incorporates the “Noise Killer” circuitry
Same unique Preamp stage
Normal / effect footswitch
Vibrato / Chorus footswitch
Triangle Wave LFO – Chorus
Sinewave LFO - Vibrato
Not True Bypass* (Jfet switching as original ) – (Switchable Stereo True bypass mod now comes standard! )
Peak Level Indicator visual feedback of input sensitivity
High / Low Input sensitivity changeover switch
Dual colour LFO rate LED, visual indication of selected effect

Blue – Chorus

Red – Vibrato

Stereo/ Mono Outputs. In a Stereo setup, wet signal is directed to the Stereo jack and Dry to the Mono output jack.
Vibrato controls are Depth & Rate
Chorus is controlled by Intensity knob (which controls both rate and depth)
When effect is bypassed the LFO LED indicator remains on without flashing
Pedalboard friendly, uses minimal real estate and operates off industry standard (9VDC negative tip 2.1mm )
The CED is the only recreation of the BOSS® CE-1 which also incorporates up to 5 extra popular switchable modifications that many owners of the original unit would use.
The mods can all be switched off, restoring to the original circuit or selectively activated by taste. These include:

Depth Mod

This mod is popular for those who were wanting more control over their chorus effect.
When activated it allows the use of the Vibrato Depth knob to control the Chorus Depth. The Stock depth setting of the Chorus can still be achieved by turning the Vibrato Depth knob fully clockwise.

Buffer Mod

Many owners of the original noticed that when selecting the high on the input sensitivity switch that some of the high frequencies of their signal was lost. This was a desirable outcome for some. To remedy this, some users would place a buffer before the BOSS® CE-1 to restore the high frequencies. The CED comes with an inbuilt buffer circuit which can be added or removed as desired.
Note: When clipping the signal heavily by having the Level control on high, it can give various responses based on what type of amp is being played through.
On some amps it can almost sound like a fuzz, and on others a more traditional crunch sound! This is the same experience with the original.

Stereo True Bypass Mod (Now comes standard!)

When activated, the Stereo True Bypass mod allows for both outputs to be … you guessed it, True Bypass!

Pot Mod

When activated, changes the default level control potentiometer value from 50K to 500K resistance.

As the Original Ce-1 was designed with keyboards in mind, many guitarists who owned original Ce-1 pedals would replace the 50K pot for a higher value.

All 4 mod switches are located inside back of unit.

Adjust to taste.

Boost 'N' Blend

The switchable Boost ‘N’ Blend mod allows the user to customise the chorus output levels and wet and dry

signal balance. Switching both Wet & Dry slide switches to “MOD'' position allows the 2 white trimpots to be

activated. This will allow an increase or reduction of the overall level of the Wet modulated & Dry signal. By simply adjusting the trims, it is possible to change the stock wet/dry blend ratio. For those wanting a “cleaner” chorus, the external level control can be turned down and the two internal boost trims can increase the overall level to match unity. The opposite can also be achieved, for those wanting to push the “Preamp Crunch'' hard but retain unity with the True Bypass level. Simply turn the Level control to maximum and use the internal trimpots to reduce the overall level to match.

Dimensions : 120 x 94 x 50mm (1590BB style enclosure)

Current draw approx : 110-130MA (Please read user manual for specific powering requirements before purchasing)

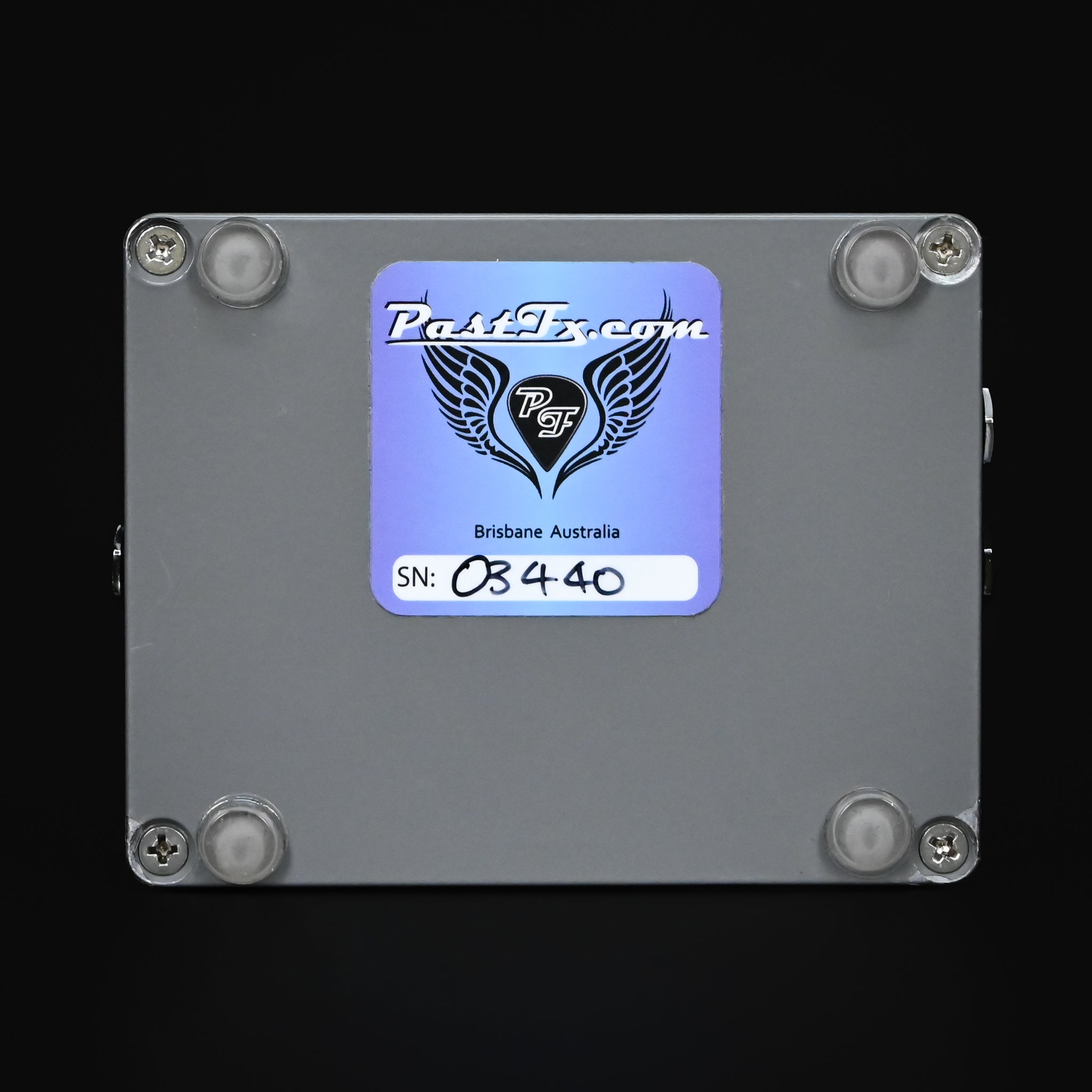

PastFx Chorus Ensemble Deluxe (03440)
