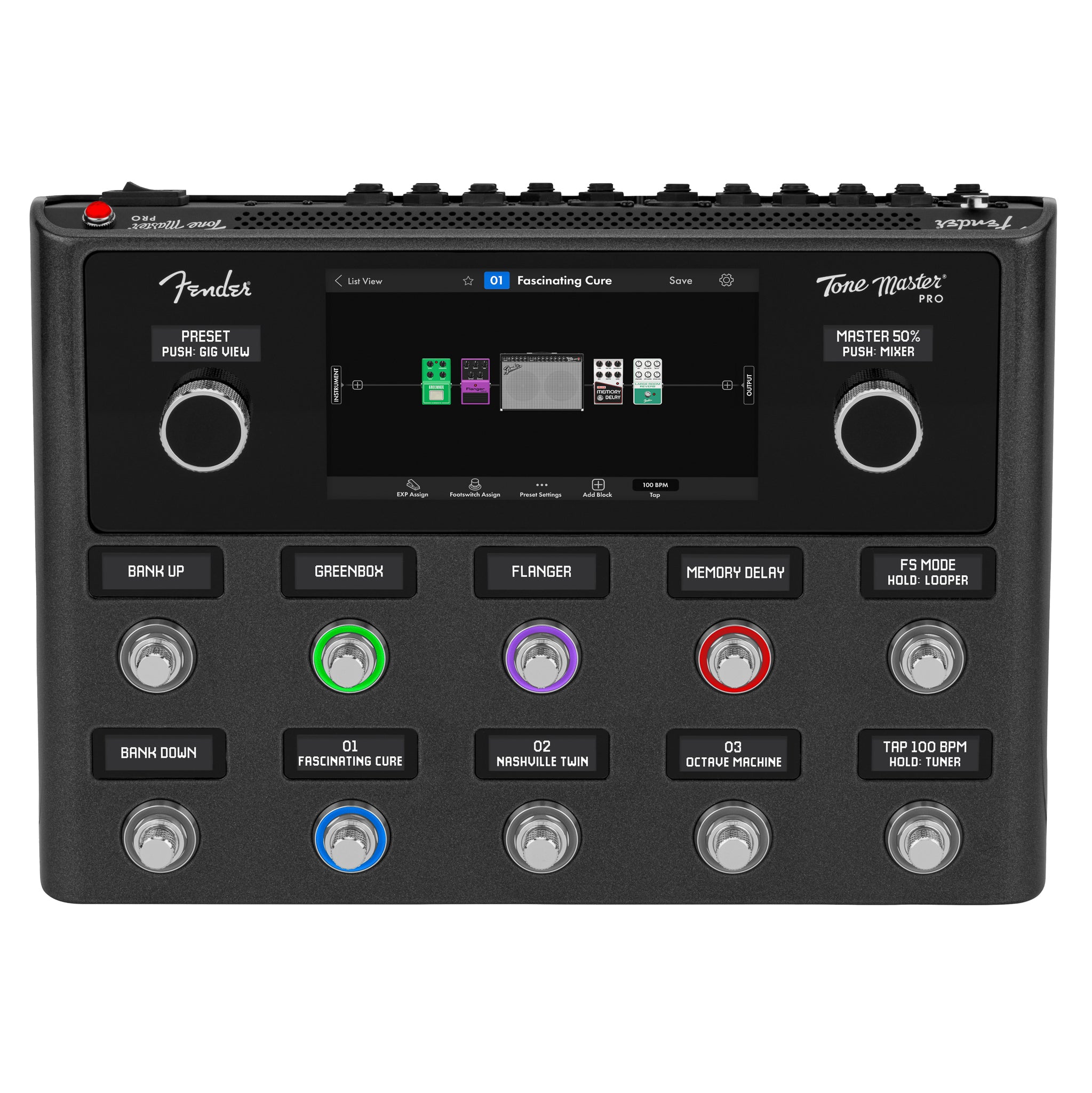

Fender Tone Master Pro

Tone Master Pro is the first no-compromise multi-effects guitar workstation that features the amazing sound quality that the Tone Master series is known for. Combining a powerfully intuitive interface and the most comprehensive I/O array available, the Tone Master Pro is the best sounding, most powerful and easiest to use guitar processor ever.

Tone Master Pro features over 100 of the world's most popular amps and effects, including all of the classic Tone Master Fender models, the first officially licensed EVH 5150 III Stealth model, and other can't-live-without classics that have all been perfectly replicated using our proprietary Tone Master Modeling process. Tone Master Pro's lightweight, rugged, stage-friendly form factor is as beautiful as it is functional. With a full-color touchscreen, stunning graphics, and intuitive user interface, dialing in the perfect tone has never been easier or more inspired.

Create Presets, customize your footswitch assignments and combine them to create Songs and organize into Setlists with ease. Tone Master Pro's 10 custom-designed footswitch encoders make editing a breeze, giving you instant access to all your presets and parameters and make adjustments just like you would on the real thing. Connect to our Tone Master Pro Control app via USB for creating, editing and sharing your own presets or for auditioning and downloading thousands of tones created by Fender's community of players and artists.

Features

Over 100 Tone Master quality Amp & Effect Models
Over 6000 Fender-captured Impulse Responses with a variety of cabinet and microphone options
3rd Party IR support
7 inch Color Touch-screen
Innovative Song & Setlist modes
60 second Stereo Looper
4 Effects Loops for integrating your favorite pedals
Instrument and XLR mic inputs
10 proprietary footswitch/encoders with LCD “scribble strips”
True preset spillover of delay and reverb tails for seamless preset changes
Firmware updates over USB
Compatible with Tone Master Pro Control desktop app for editing, sharing and downloading presets
Over 500 User Presets with access to thousands more from the Cloud using the Tone Master Pro Control App
Bluetooth wireless connection for streaming audio from a mobile device
Stereo 1/4" Headphone output jack for silent practice
Compatible with the Mission Engineering SP1-TMP Expression Pedal for realtime control of parameters
Lightweight, under 9 lbs.
Patent Pending

Specs:

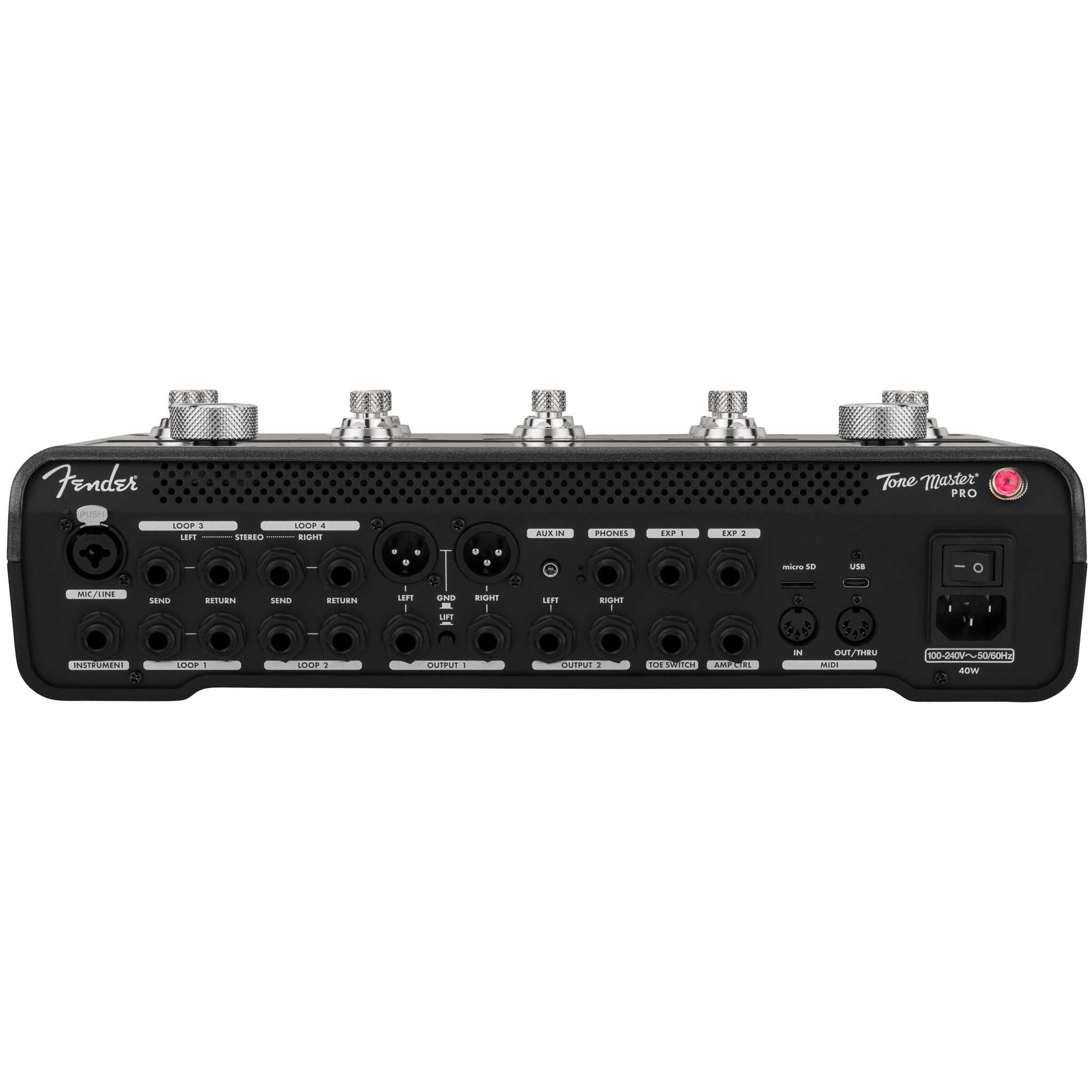

Electronics

Connection Type: 1/4"
Connectivity: USB-C®
Control Panel: Navigation Control, Master Volume Control, 10 Footswitch/Encoders with LCD "Scribble Strips"
Digital Audio Frequency Response: 20 Hz - 20 kHz (+0.1/-0.7 dB)
Effects: Over 100 Quality Amp and Effect Models
Effects Loop: 4 Total
Looper: 60-Second Stereo Looper
Other Connections: 1/4" Expression Pedal 1 and 2, Amp Control
Phantom Power: +48 VDC (XLR Only)
Power Requirements: 40W

General

Color: Black
Product Name: Tone Master® Pro
Series: Tone Master®

Hardware

Effects Loop Connection Type:
- Mono Loops (1 & 2) 1/4" Unbalanced
- Mono Loops (3 & 4) 1/4" TRS Balanced (Can Be Combined into Stereo Pair)

Inputs

Auxiliary Input Connection Type: 3.5 mm Stereo
Auxiliary Input Impedance: 10 kΩ
Auxiliary Input Max Input Level: 2.4V
Effects Loop Impedance: 10 kΩ
Instrument Input Connection Type: 1/4"
Instrument Inputs Maximum Level: 5.6V (2.8V with Input Pad Off)
Line Input Connection Type: 1/4” TRS Female (Combo), Balanced
Line Inputs Impedance: 1MΩ
Line Inputs Maximum Level: 7.8V Balanced, 4.5V Unbalanced
Microphone Input Connection Type: XLR Female (Combo), Balanced
Microphone Preamp Input Impedance: 1.8 kΩ Balanced
Microphone Preamp Maximum Input Level: 4.7V

Measurements

Product Depth: 10.3" (26.16 cm)
Product Height: 3.8" (96.4 mm)
Product Width: 14.6" (37.1 cm)

Miscellaneous

Supported Sample Rates: 44.1 kHz Internal (Project Sync 44.1/48/88.2/96 kHz)

Output

Headphone Outputs Impedance Working Range: 33Ω x2 (16Ω x2 Minimum)
Headphone Outputs Maximum Output: 110mW x2
Line Outputs Connection Type: 1/4” TRS Female, Balanced (Stereo Pairs Output 1 and 2)
Line Outputs Maximum Output Level:
- Output 1 - 12V (Line) 3.9V (Instrument), Balanced
- 6.1V (Line) 2.8V (Instrument), Unbalanced
- Output 2 - 4.7V (Line) 2.8V (Instrument)
Line Outputs Output Impedance:
- Output 1 - 200Ω (Line) 290Ω Balanced, 400Ω Unbalanced (Instrument)
- Output 2 - 170Ω

Fender Tone Master Pro Multi-Effects Pedal 120V (TGPF25500479)
