Miami-Guitars is an authorized Ernie Ball Music Man Dealer/ Factory warranty included. If you have any questions or concerns regarding the instrument of your interest, please send us a message or give us a call

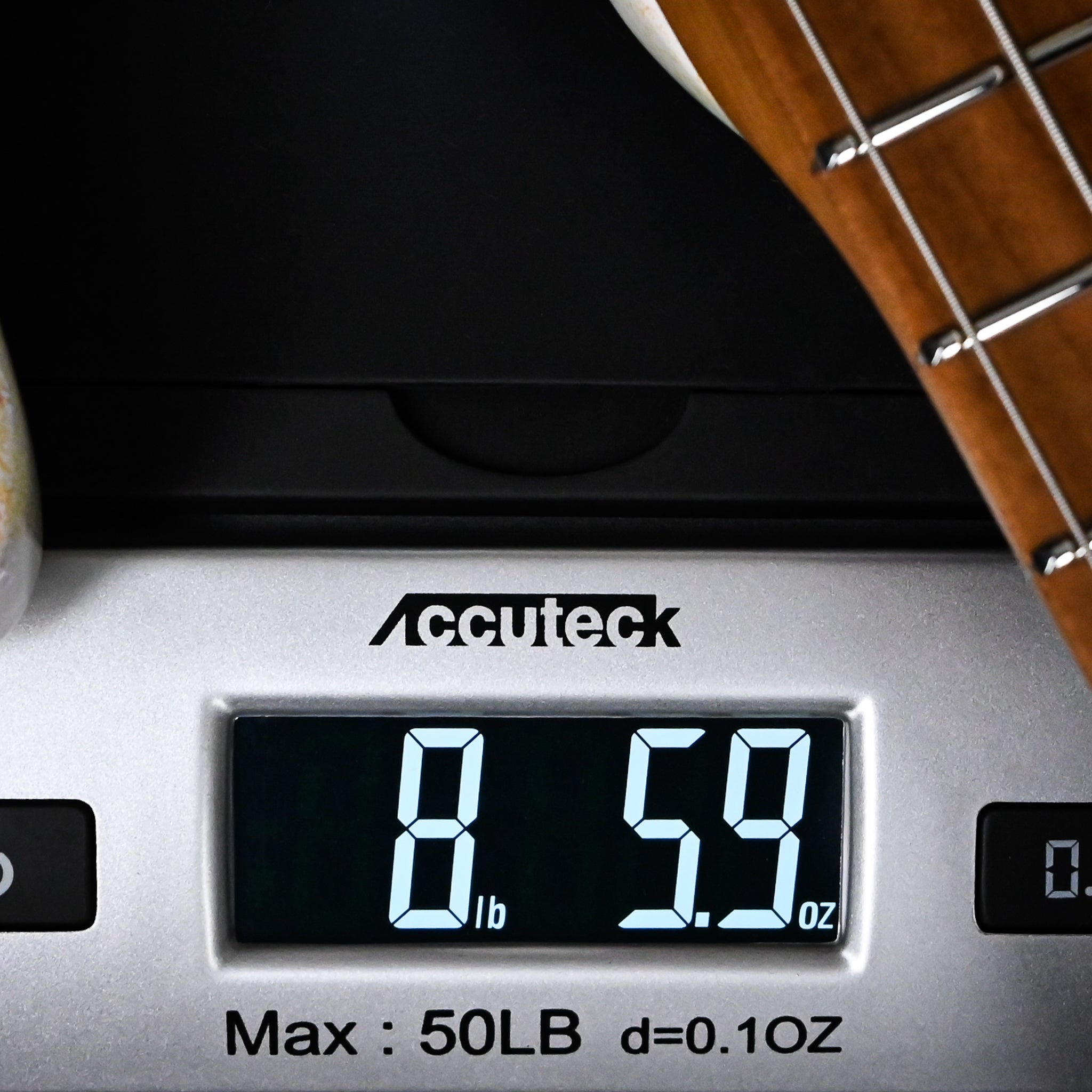

Weight: 8 lbs 5.9 oz

The Ernie Ball Music Man StingRay Special 5-String combines classic tone with modern upgrades for maximum performance. Its ash body, roasted maple neck, and 22 stainless steel frets provide durability, resonance, and a smooth playing experience. The 18-volt, 3-band preamp delivers exceptional headroom and tonal flexibility, while the neodymium pickups offer powerful, clean output in one- or two-pickup configurations. With lightweight hardware, it’s the lightest and most versatile StingRay 5 yet—perfect for stage or studio.

Specifications

StingRay 5 Special

Model: StingRay 5 Special

Size: 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long)

Body Wood: Select Hardwoods

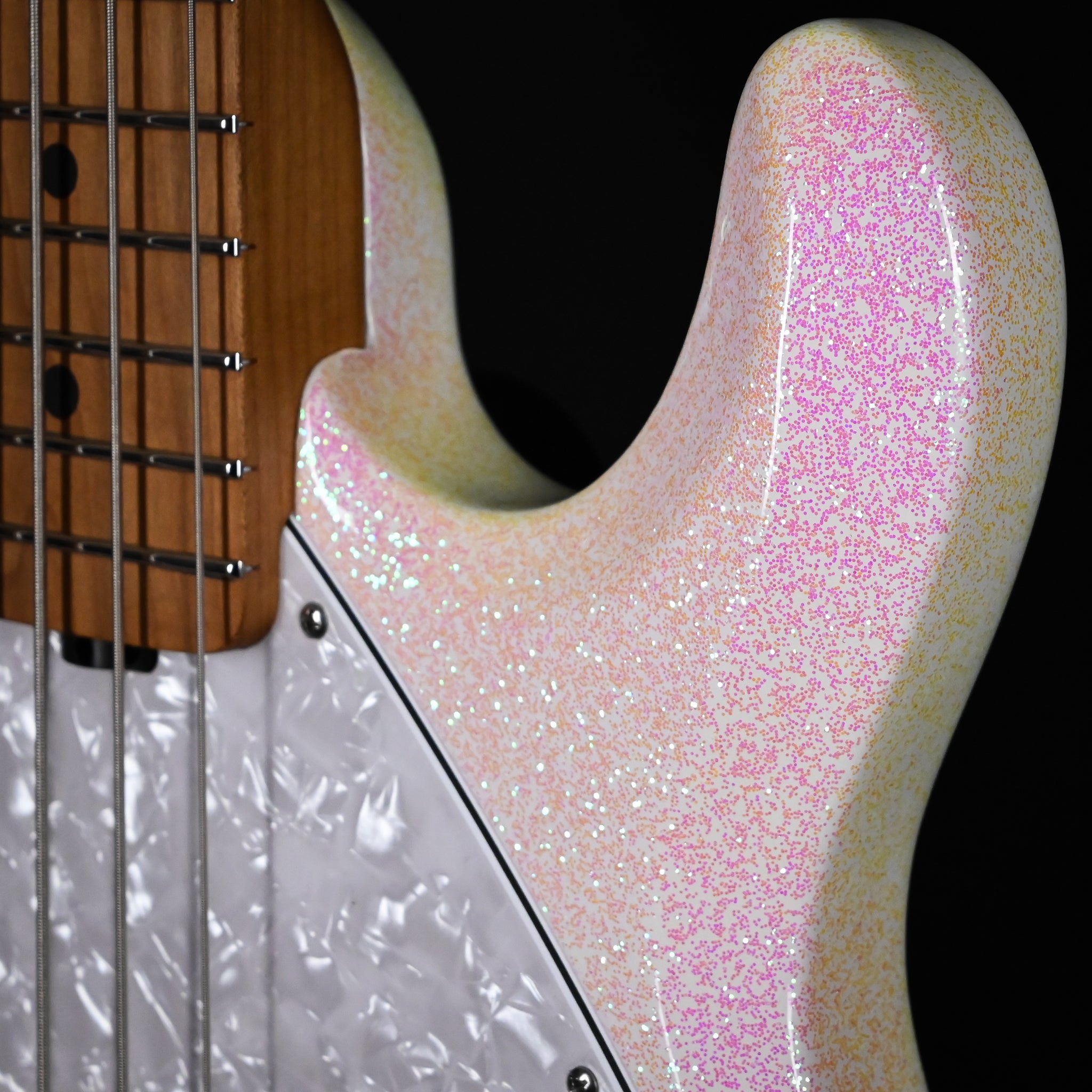

Body Finish: High gloss polyester (Except Black Rock - Matte)

Bridge: Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles

Pickguard: White Pearloid

Scale Length: 34" (86.4 cm)

Neck Radius: 11" (27.9 cm)

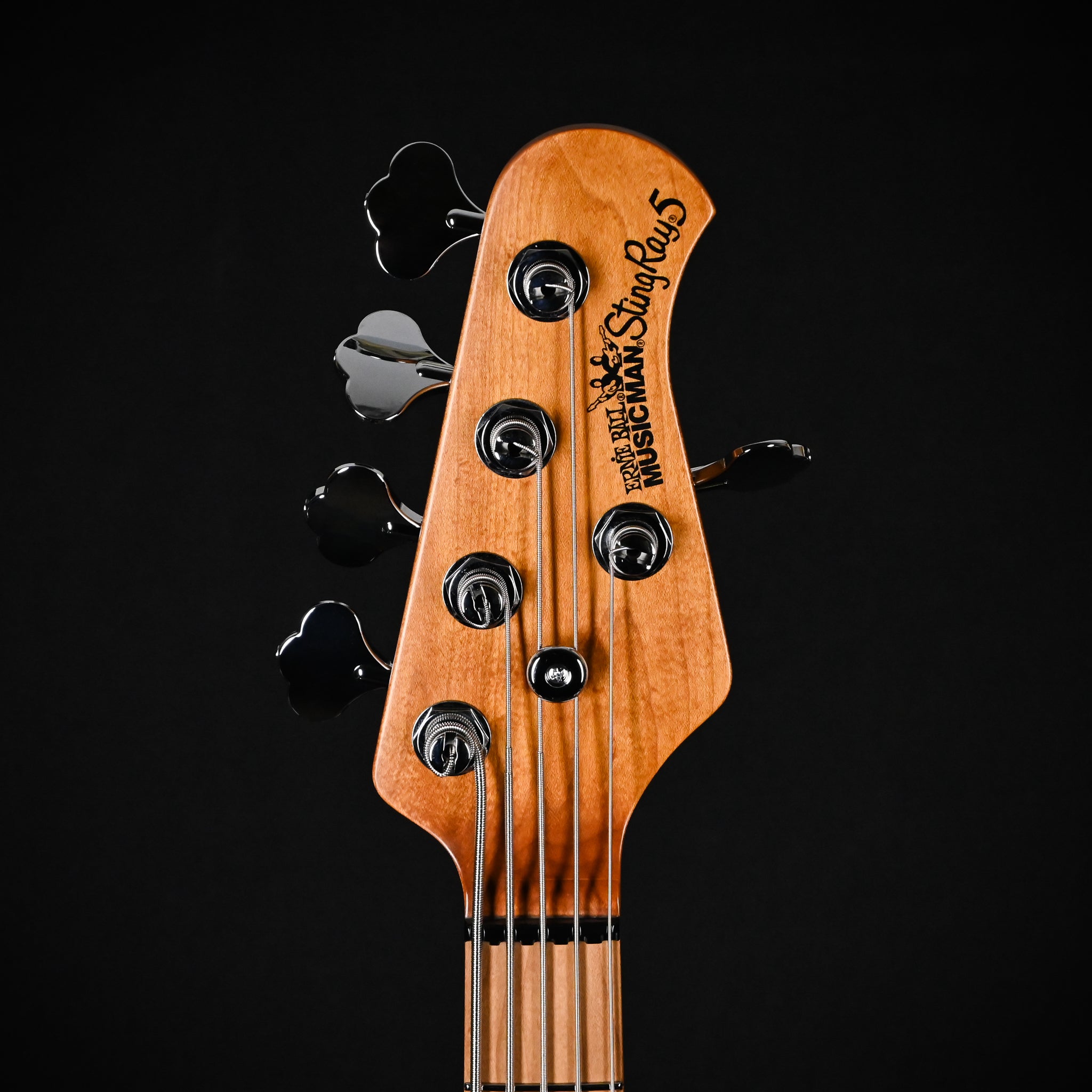

Headstock Size: Only 9" (22.9 cm) long

Frets: 22 - High profile, wide, Stainless Steel

Neck Width: 1-3/4" (44.5 mm) at nut 2-3/4"" (69.9 mm) at last fret

Neck Wood: Select roasted maple neck

Fingerboard: Fretted - Maple

Neck Finish: Gunstock oil and hand-rubbed special wax blend

Neck Colors: Standard – Natural with finished headstock

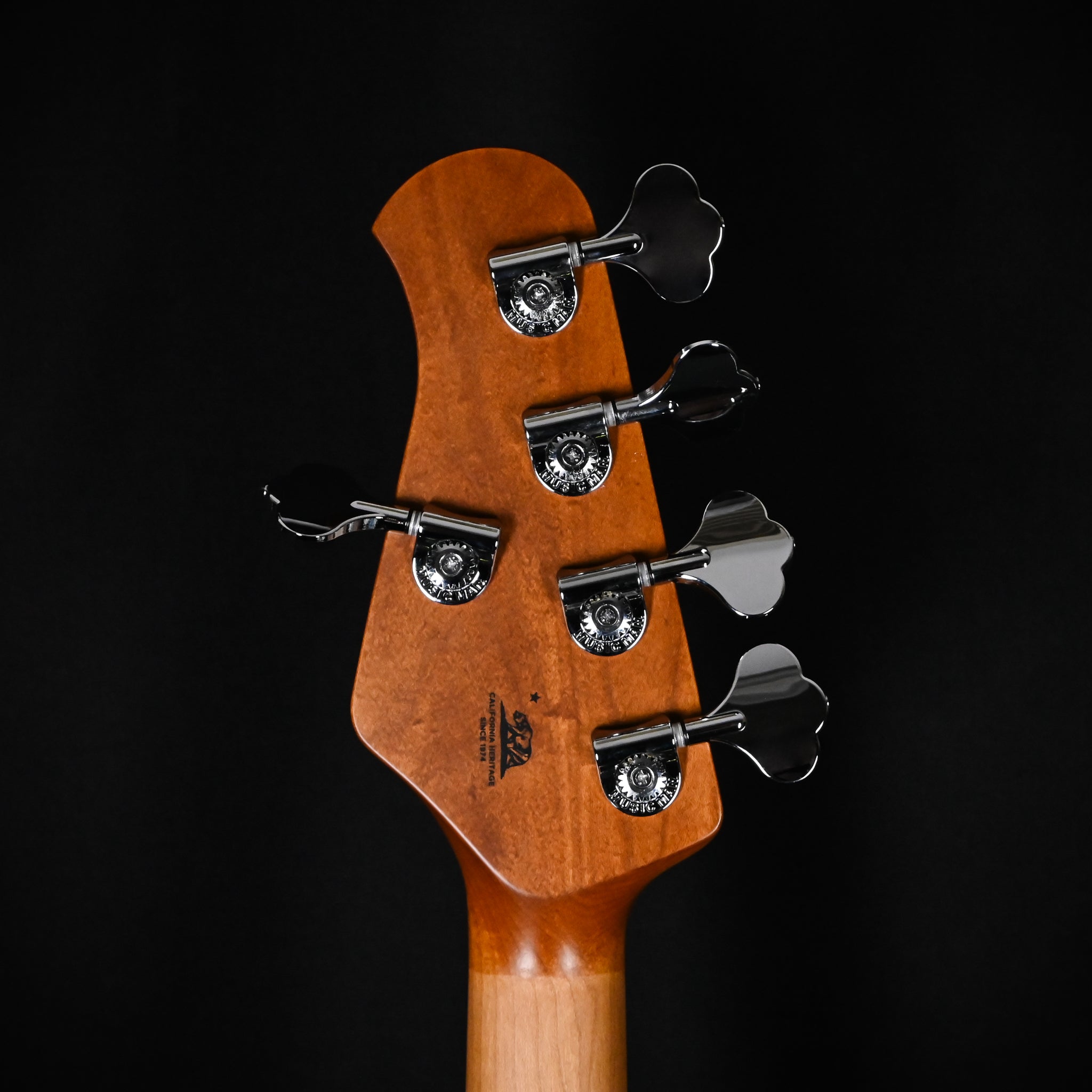

Tuning Machines: Custom Music Man, lightweight with tapered string posts and ergonomic clover design

Truss Rod: Adjustable - no component or string removal

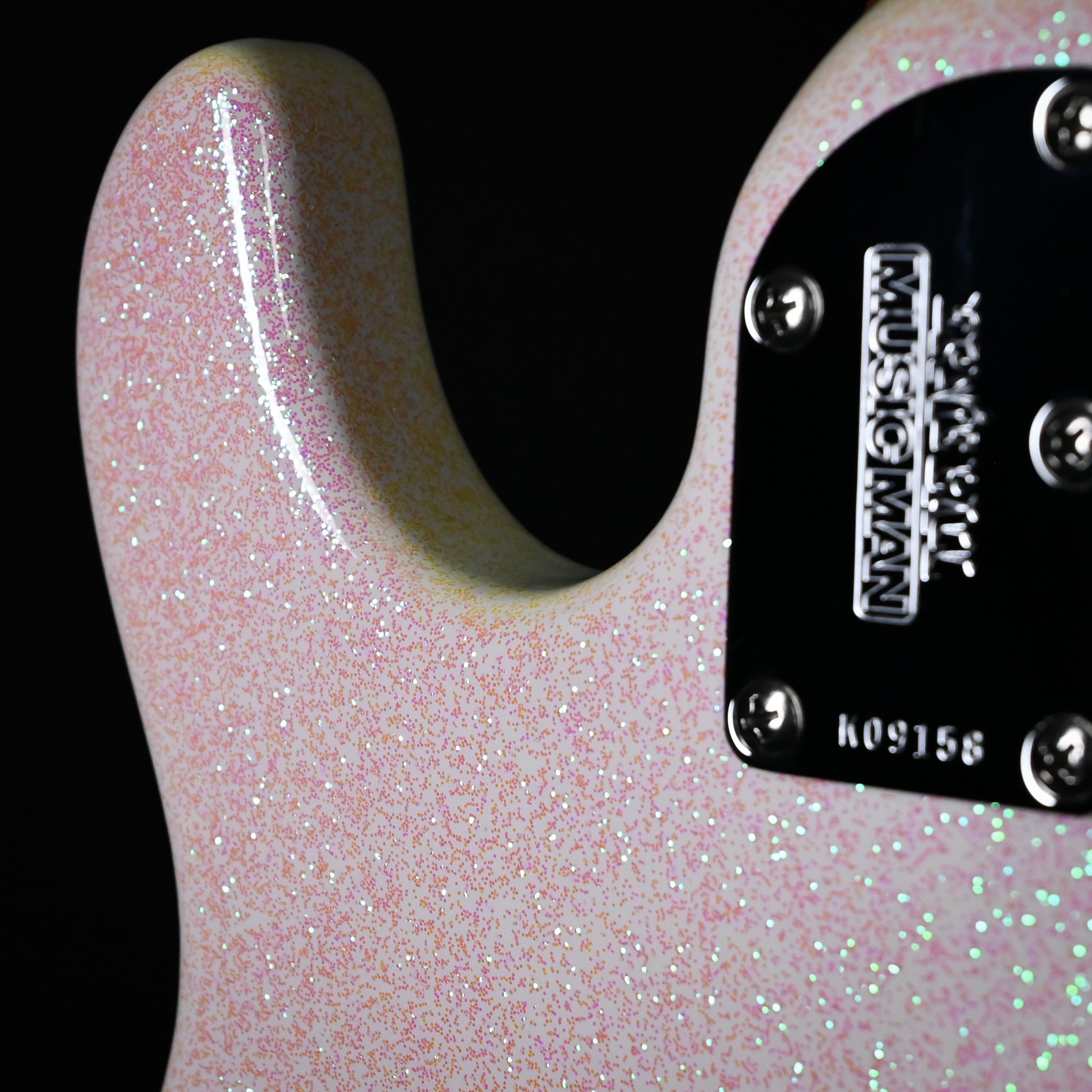

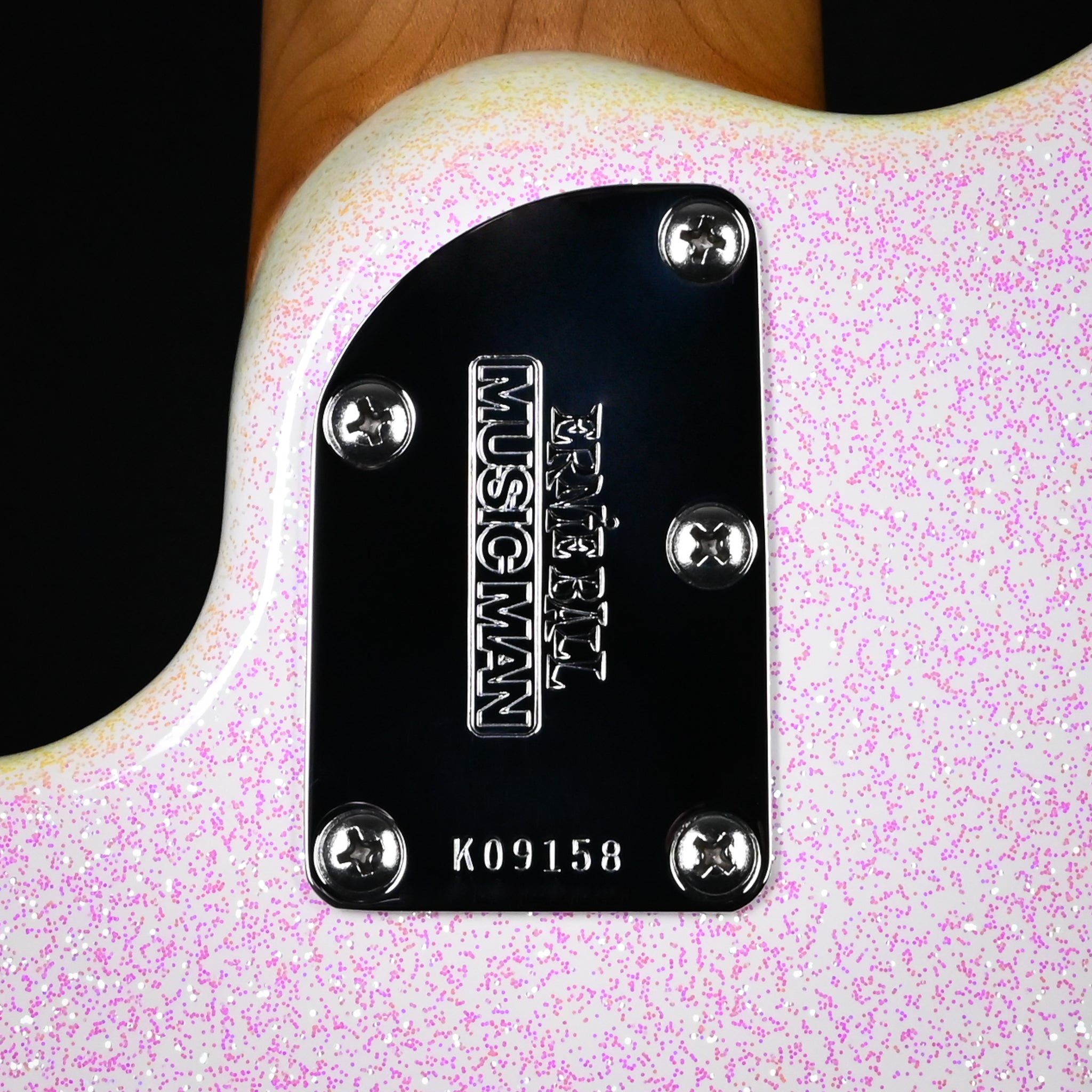

Neck Attachment: 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets

Electronic Shielding: Graphite acrylic resin coated body cavity and aluminum lined pickguard

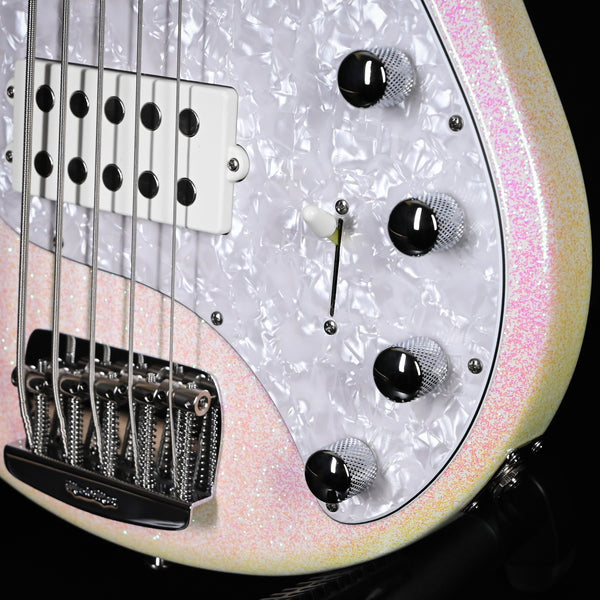

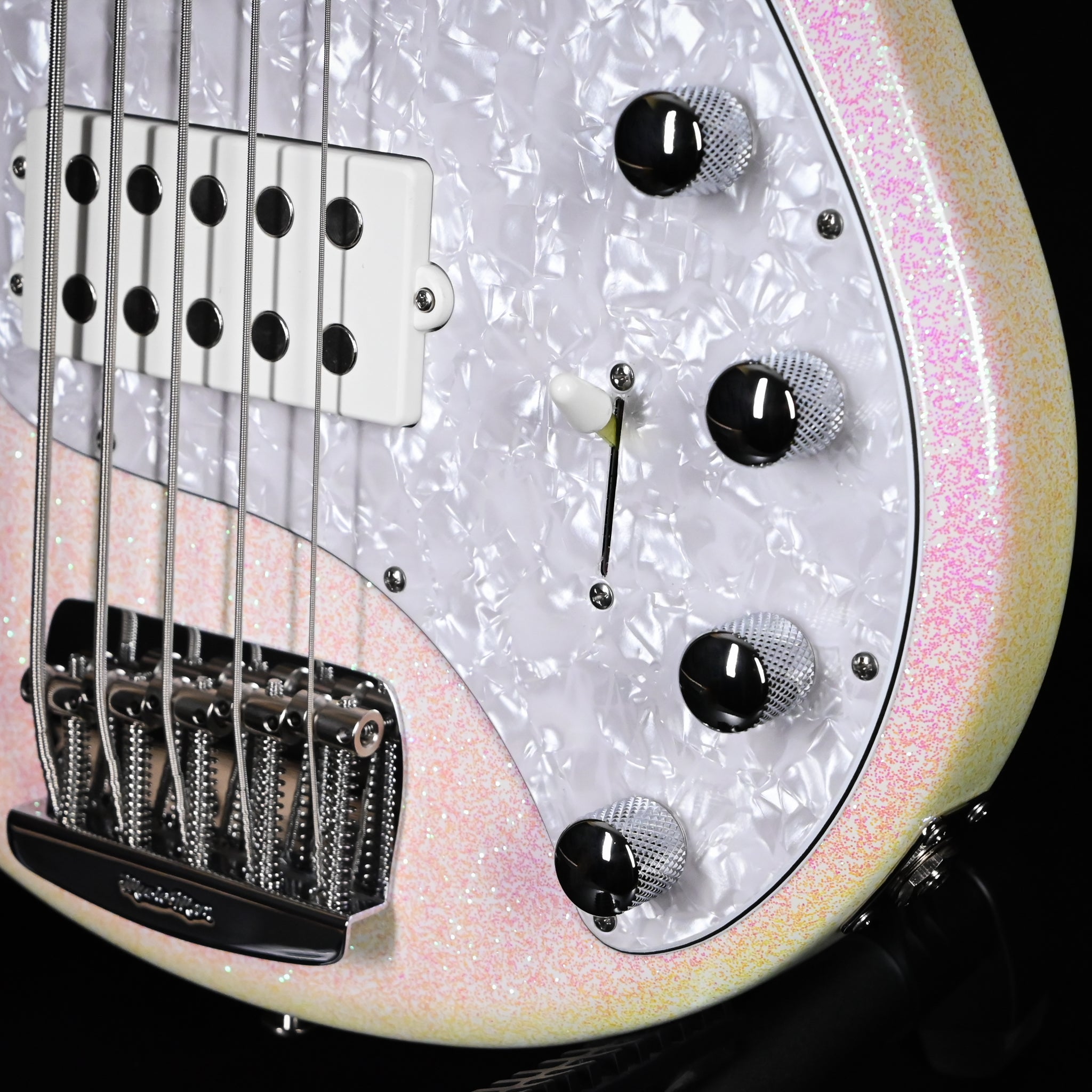

Controls: 3-band active preamp with 18 volts of headroom; vol, treble, mid, bass

Switching: Single Pickup - 3-way lever pickup selector

Pickups: Standard - Single Humbucking with Neodymium magnets

Left Handed: No

Strings: 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)

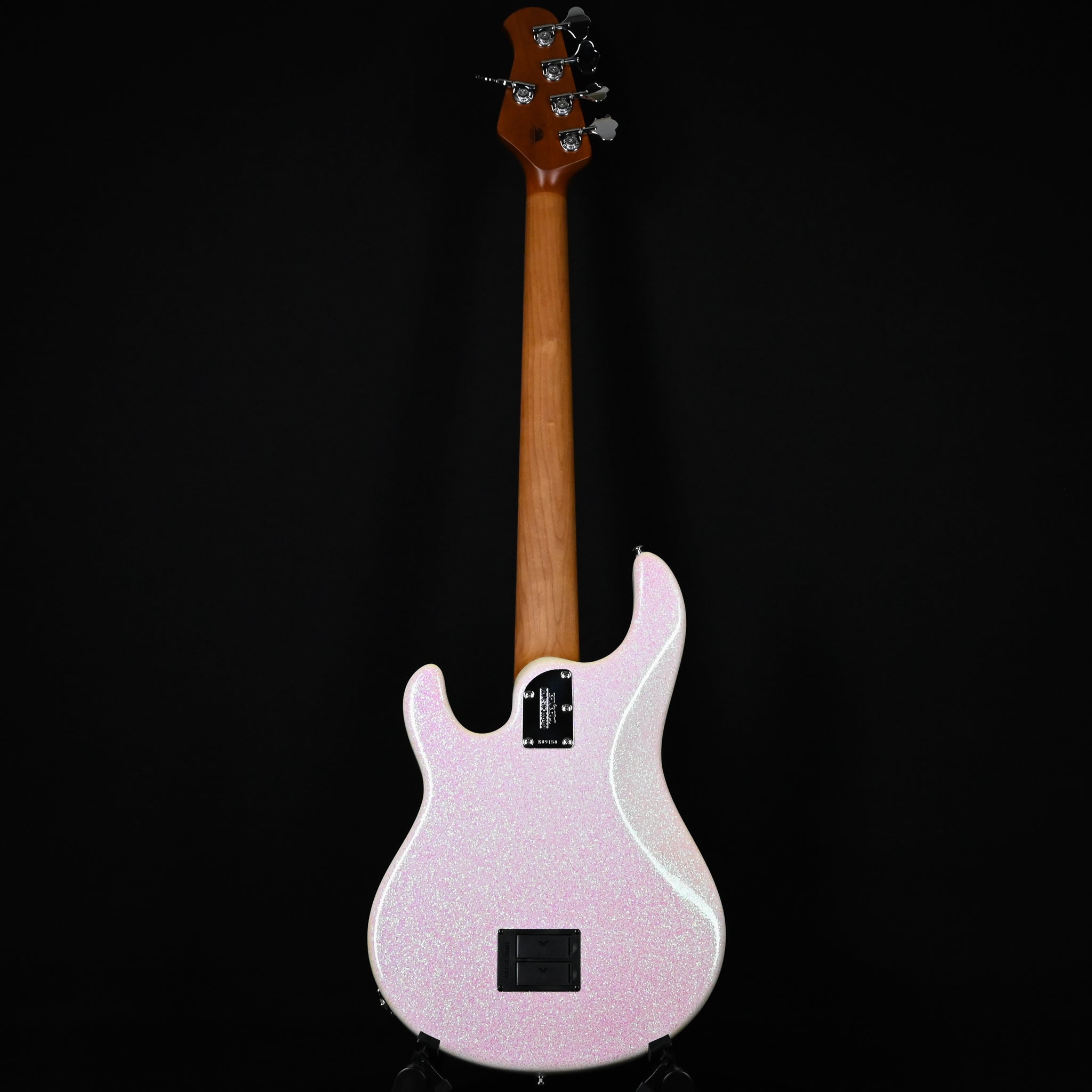

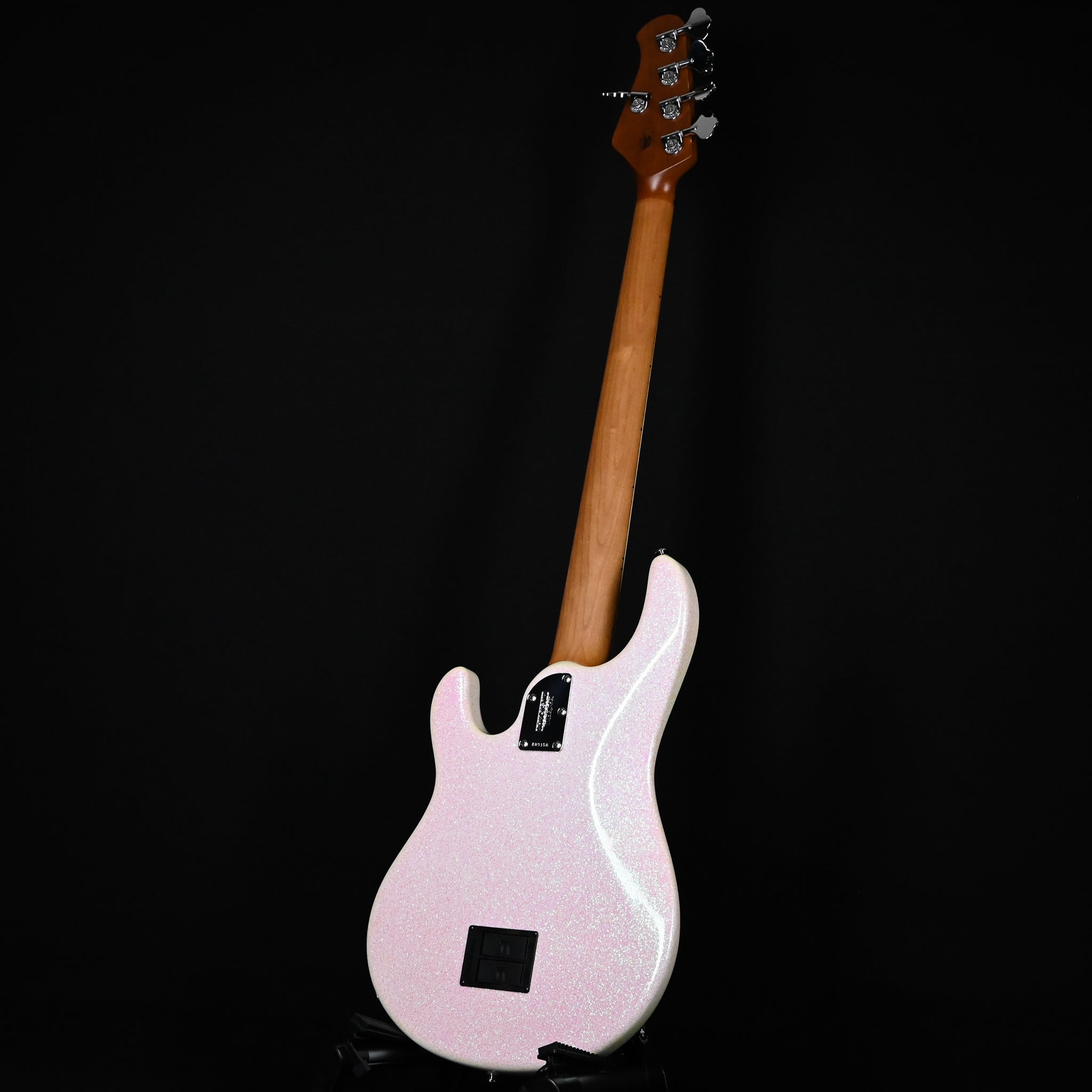

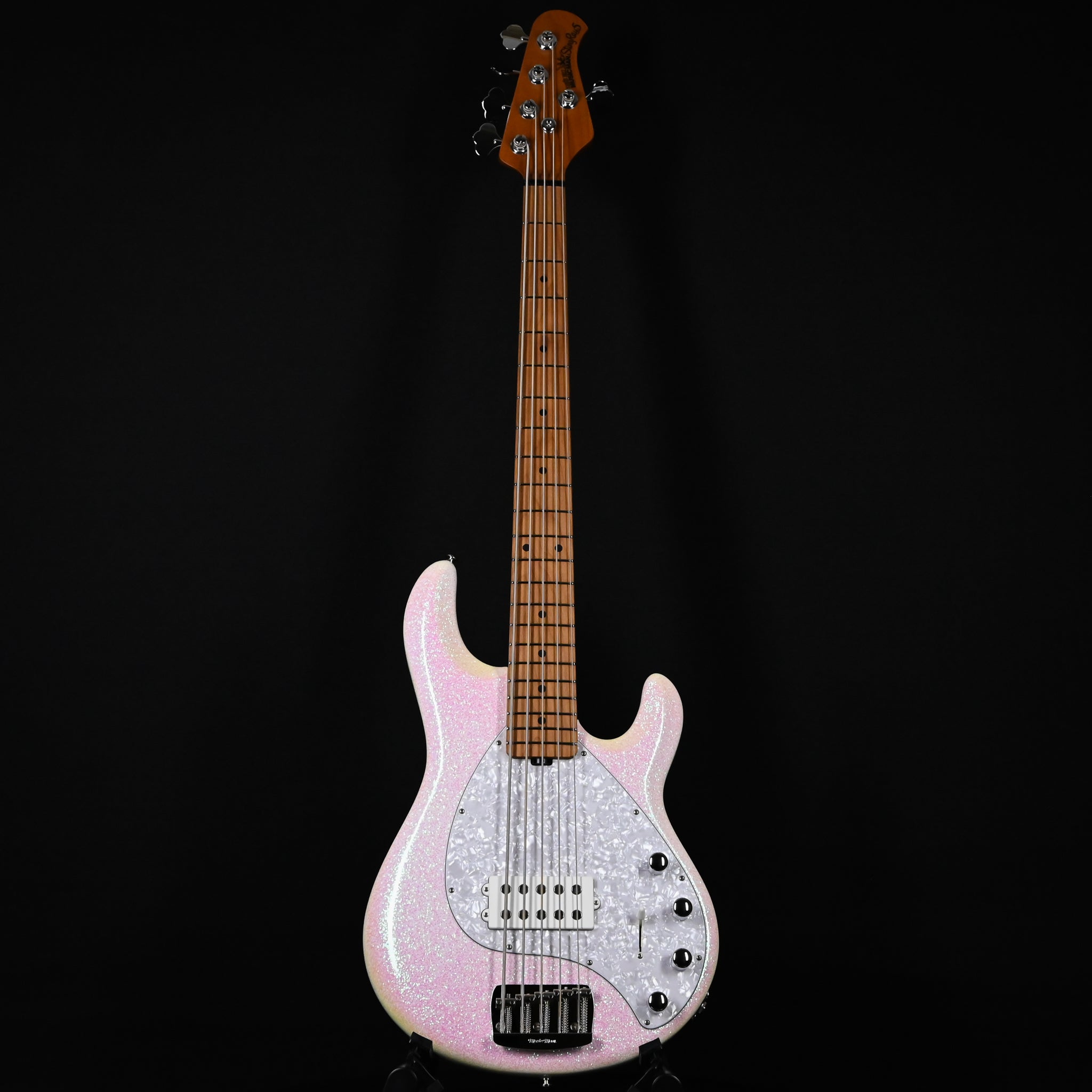

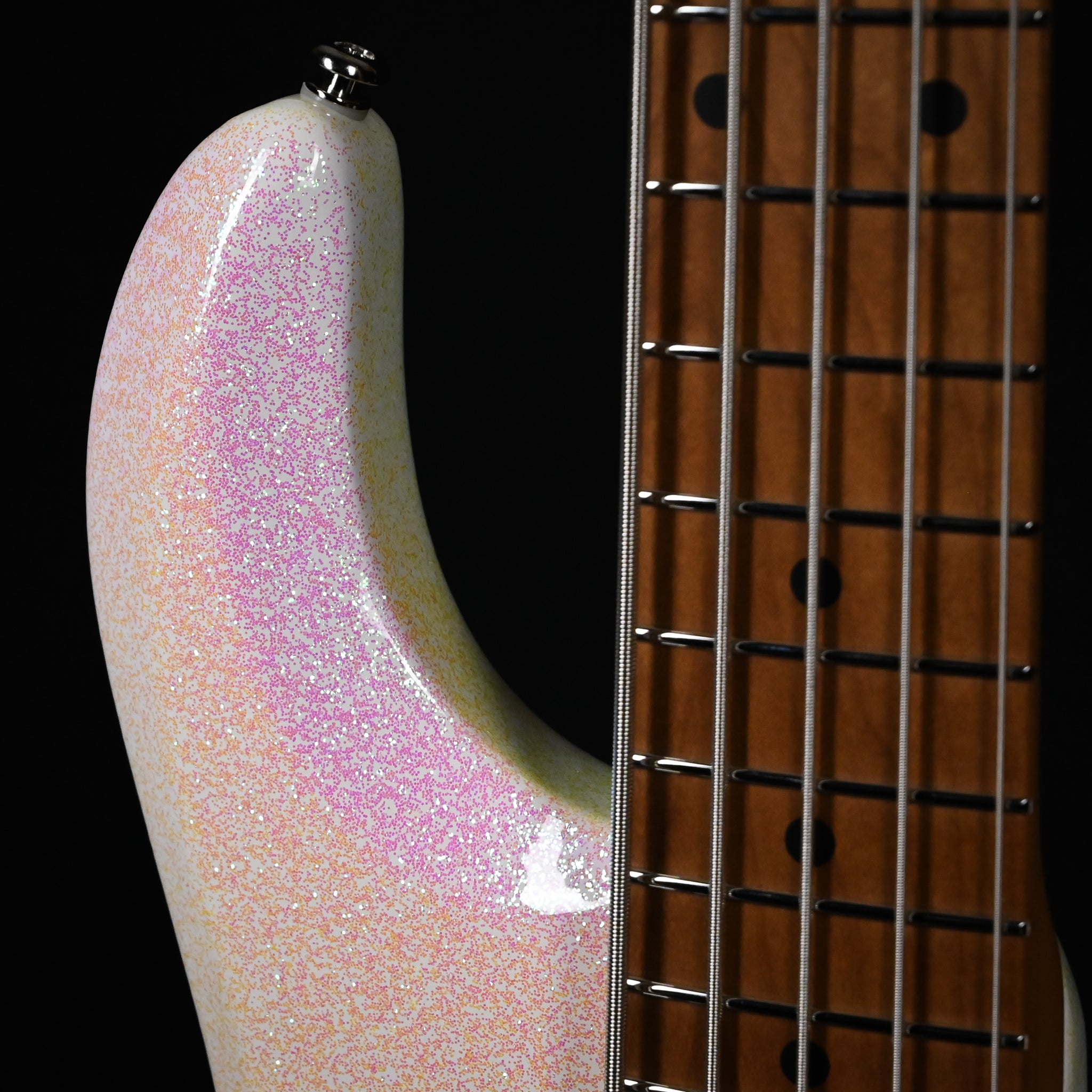

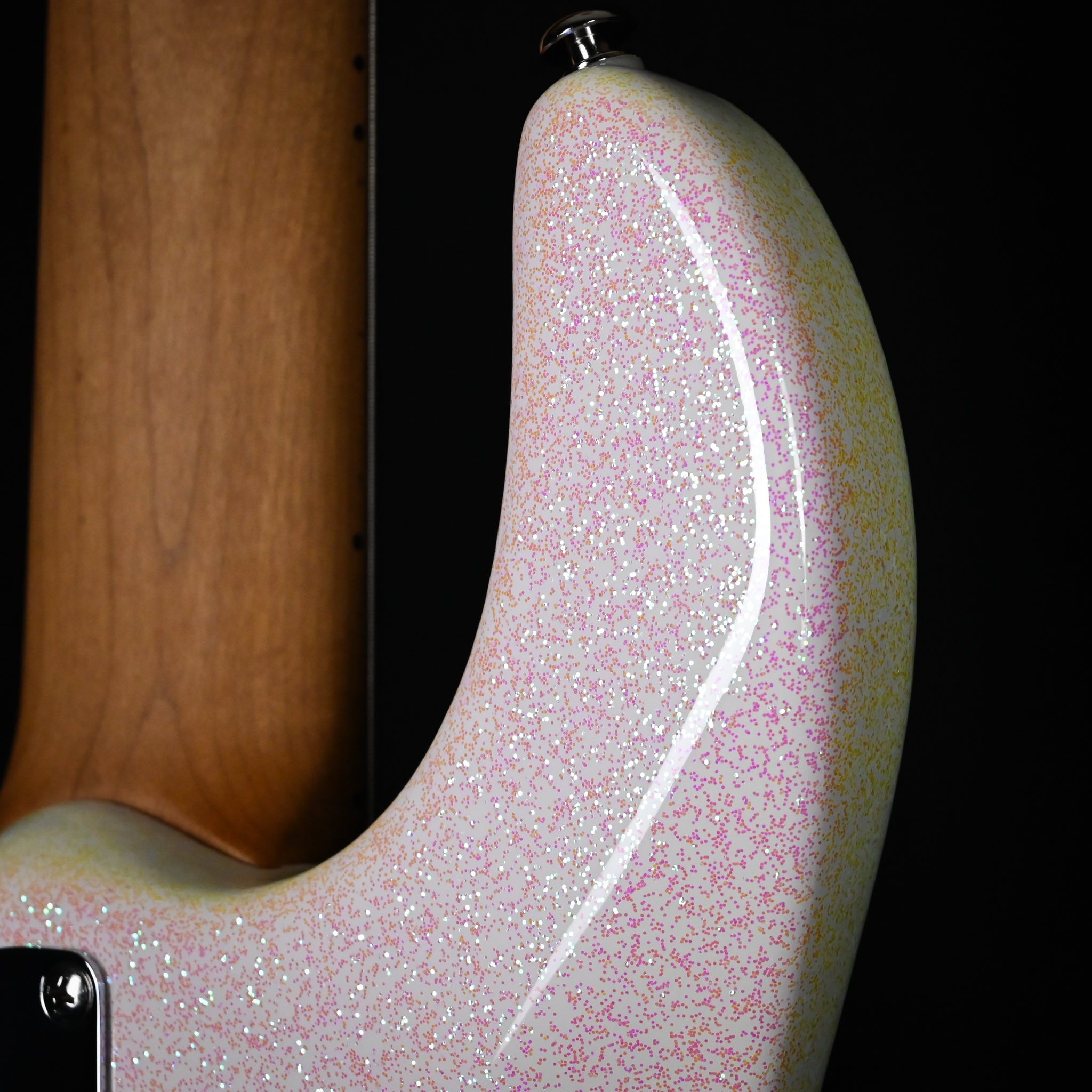

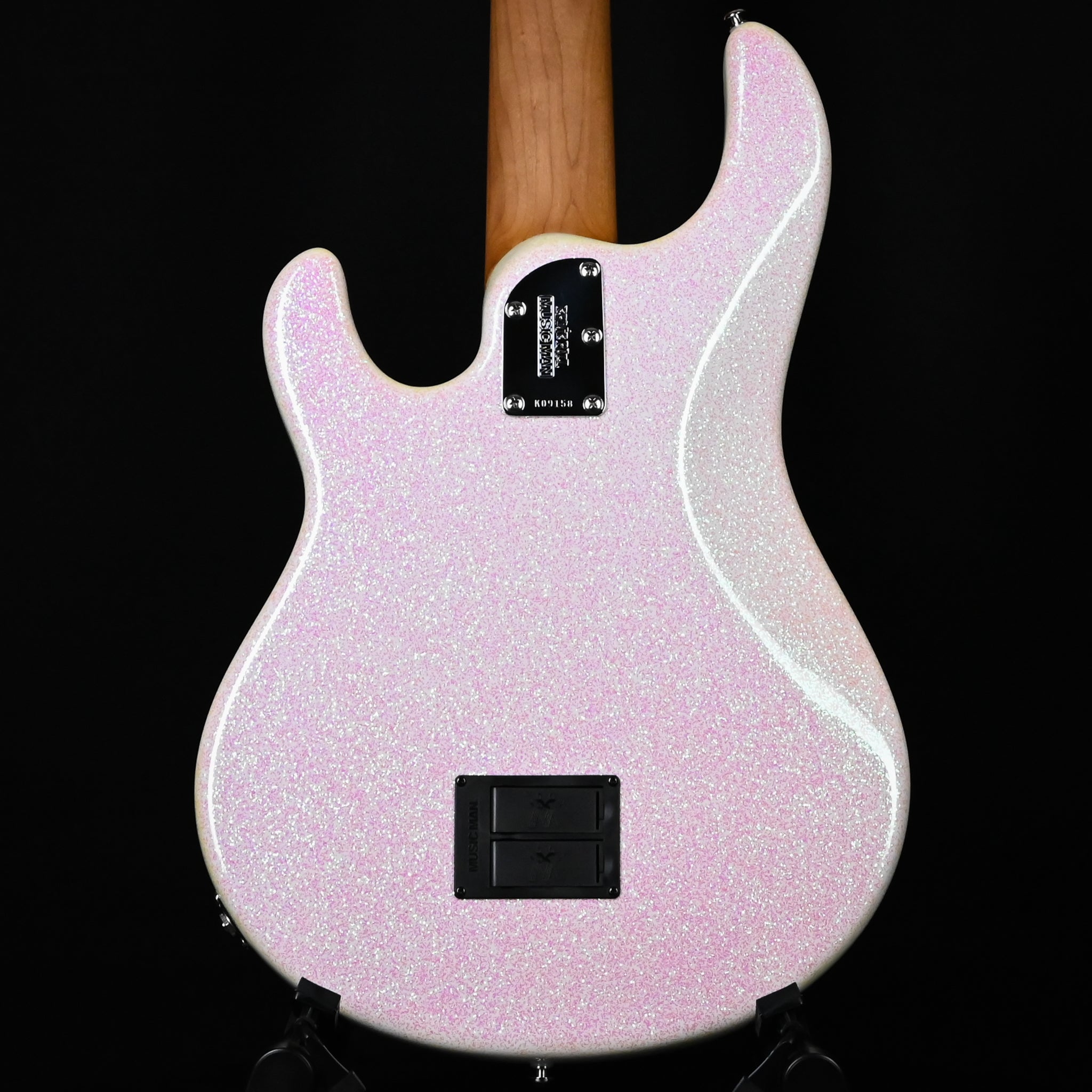

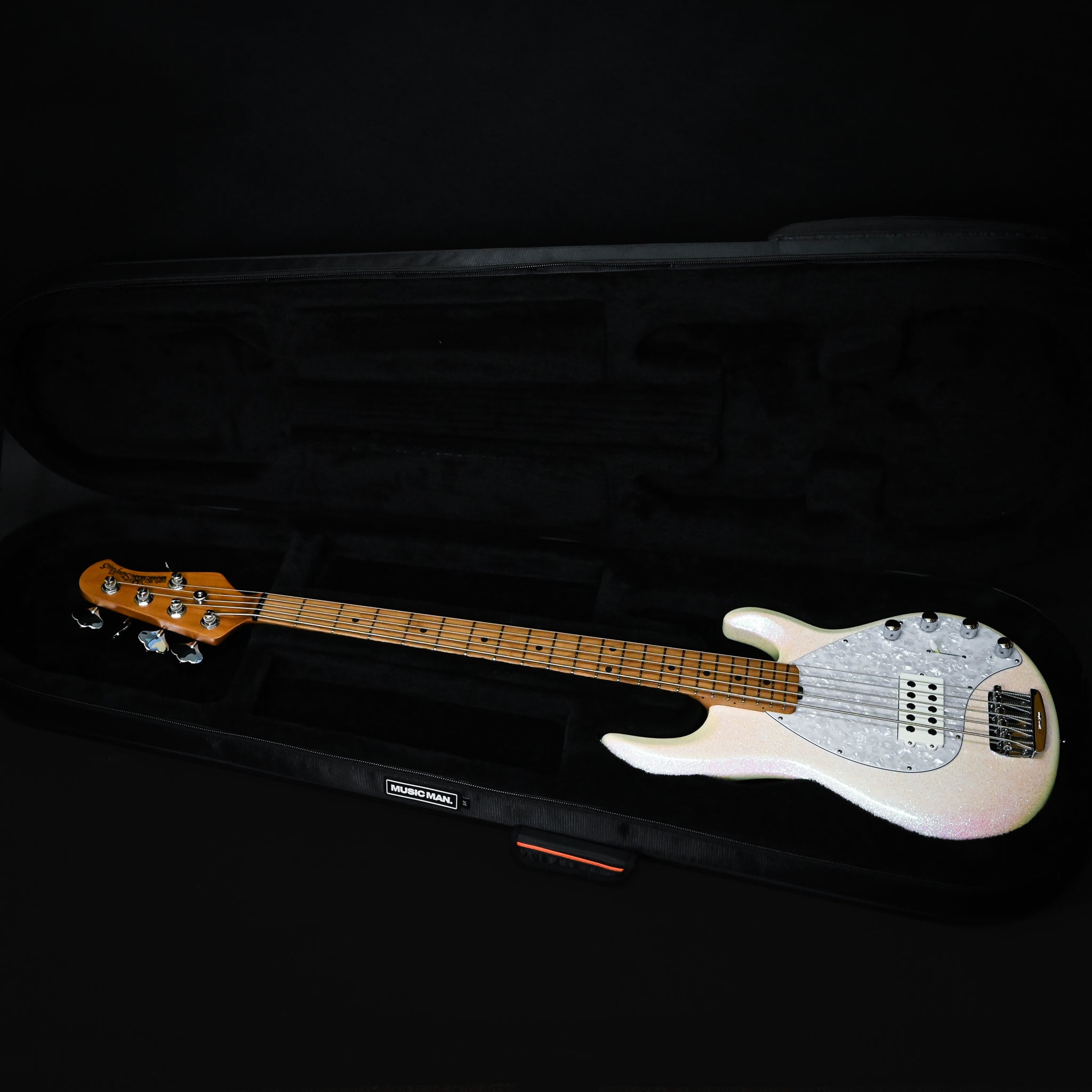

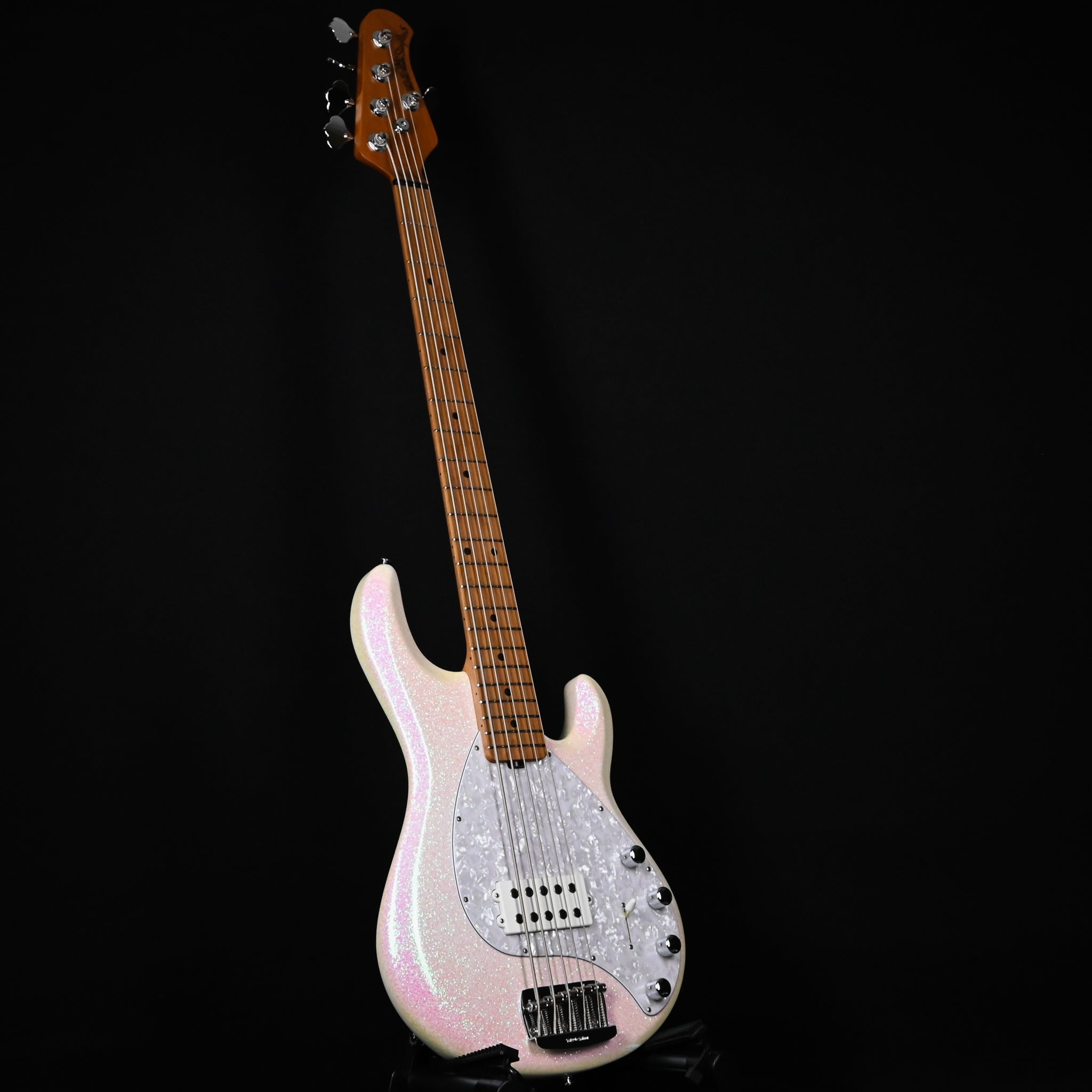

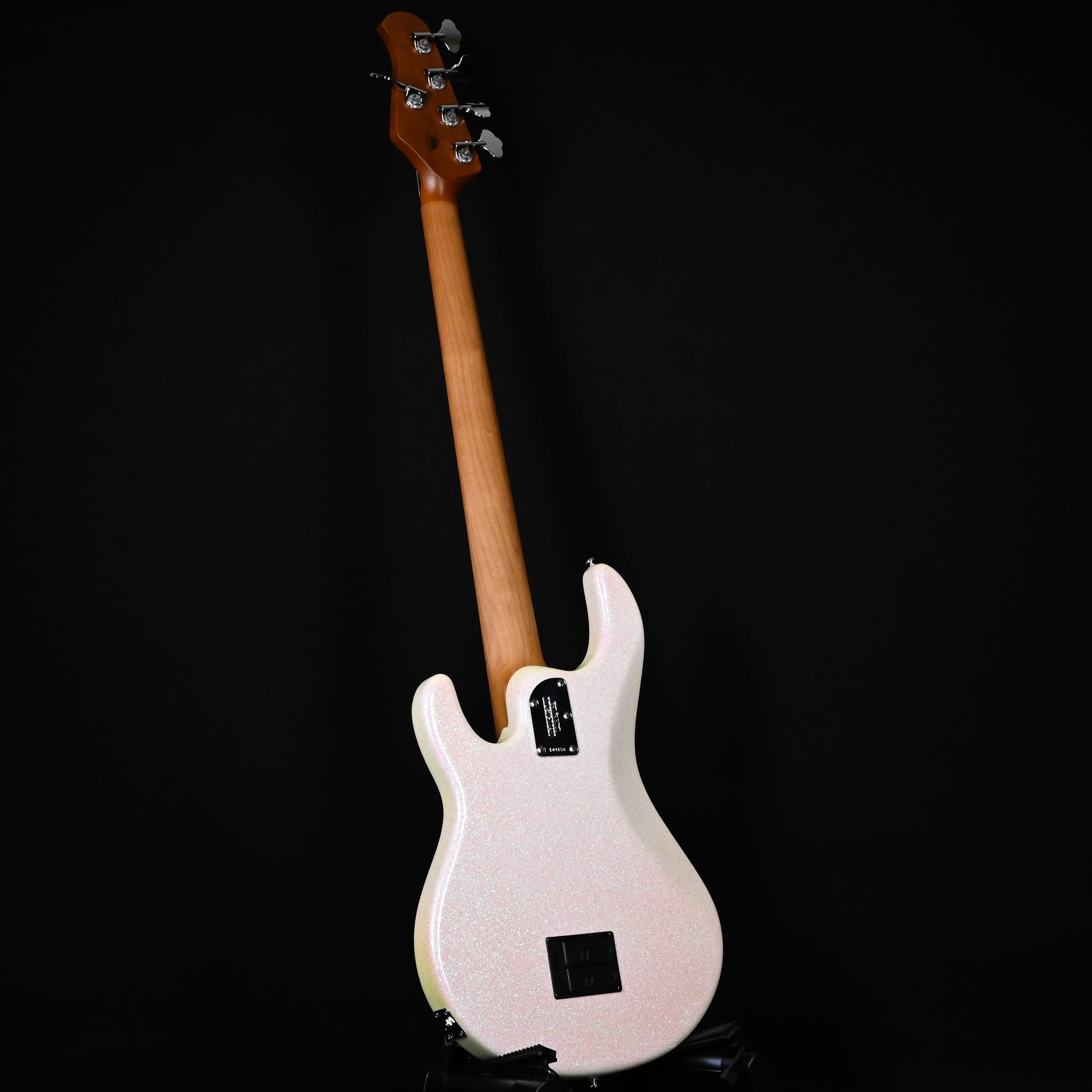

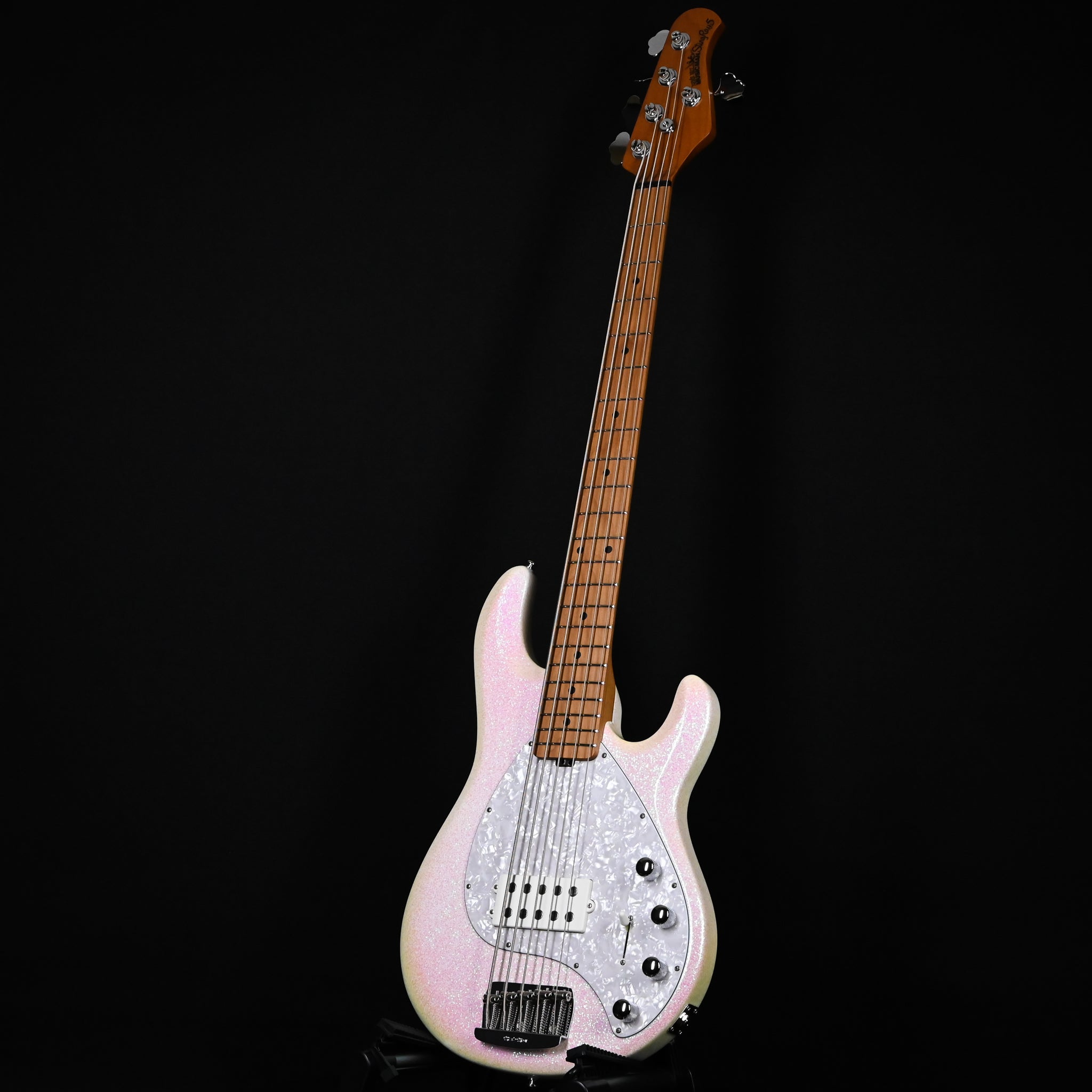

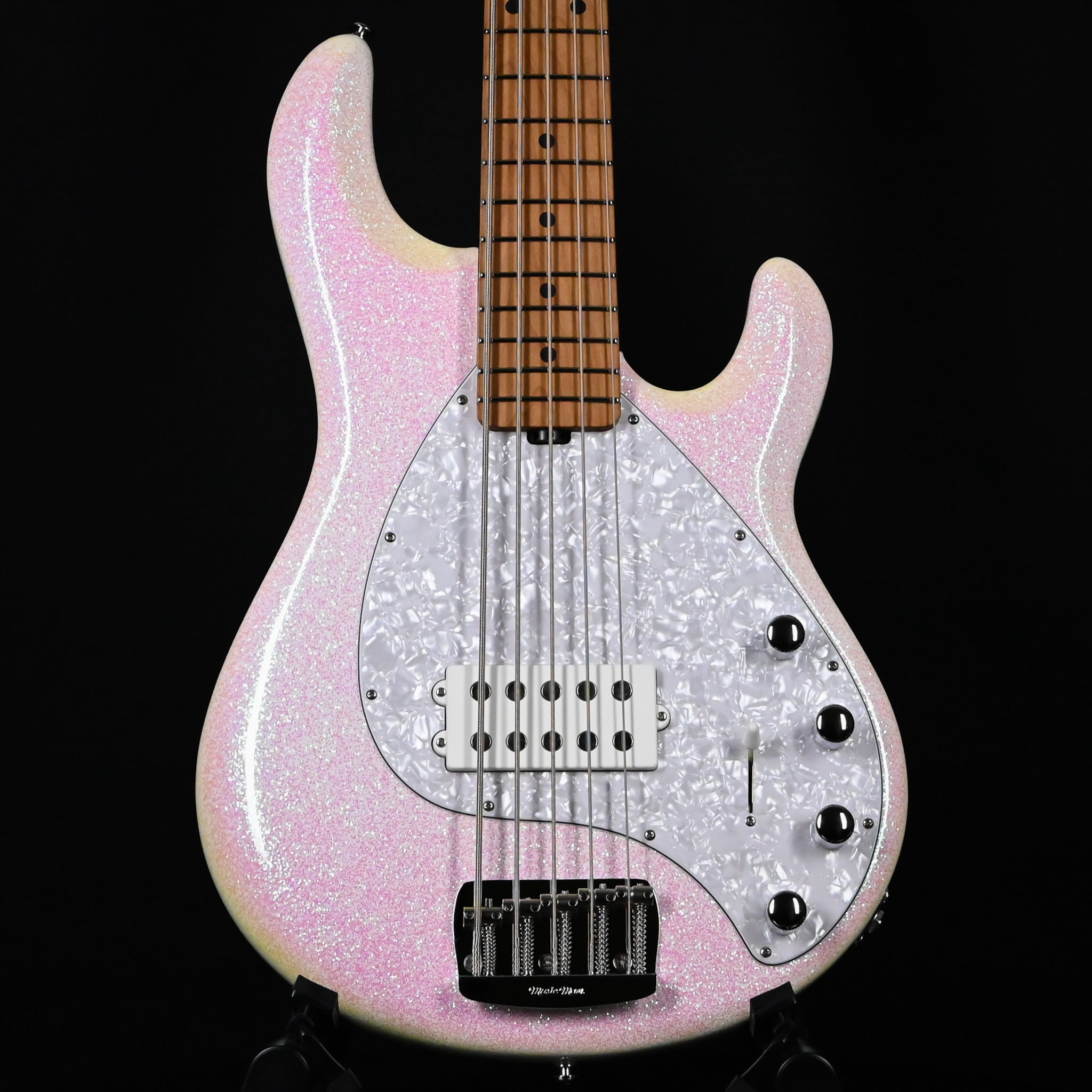

Ernie Ball Music Man StingRay 5 Special H 5-String Bass Guitar- Dazzler 2025 (K09158)
